1. introduction
This compression testing machine is suitable for compression strength test of cement, concrete, brick, etc. And if equipped with suitable test fixtures, it can make test of splitting tensile test, flexural and bending test, static elastic modulus test etc.
Compression and upset test for metal materials can be completed on this compression testing machine. And more than one displacement or deformation measuring device can be equipped for requirement. It is the very testing machine for scientific research institutions, cement quality control, industrial and mining enterprises, etc.
2.Specification
| No. |
Product name |
Digital display concrete compression testing machine |
| 1 |
model |
YES-2000 |
YES-3000 |
| 2 |
Max. capacity |
2000KN |
3000KN |
| 3 |
Force measuring range |
4%-100% |
| 4 |
Relative error of test force |
≤±1% |
| 5 |
Control mode |
Manual control and hydraulic loading |
| 6 |
Ball screw adjusting mode |
Manual |
Electrical adjusting |
| 7 |
Size of upper and lower compression plate |
Upper: Φ225mm
Lower: Φ300
|
370x370mm |
| 8 |
Max. compression space |
320mm |
330mm |
| 9 |
Piston stroke |
30mm |
50mm |
| 10 |
Diameter of piston |
250 |
310mm |
| 11 |
Rated pressure of oil pump |
40 |
40Mpa |
| 12 |
Power |
3 phase 0.75kW |
3 phase 1.1kW |
| 13 |
Dimension |
800x500x1200 |
1000x600x1500mm |
| 14 |
Weight |
1200kg |
1800kg |
| No. |
Product name |

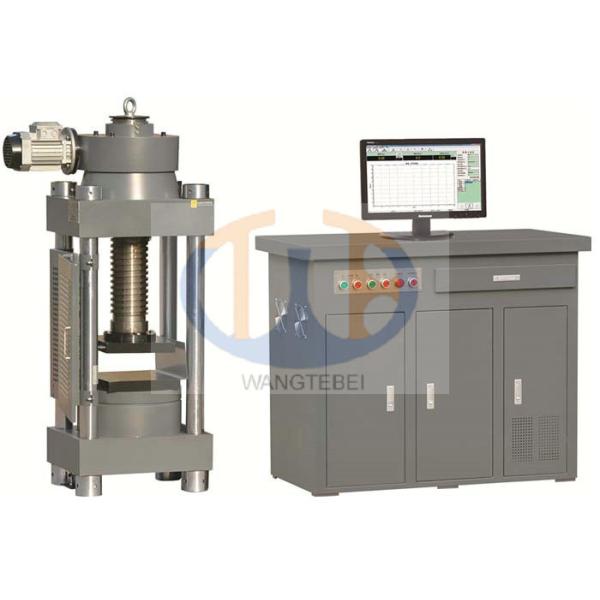

Computer control concrete compression testing machine |
| 1 |
Model |
YAW-2000 |
YAW-3000 |
| 2 |
Max. capacity |
2000KN |
3000KN |
| 3 |
Force measuring range |
2%-100%FS |
| 4 |
Relative error of test force |
≤±1% |
| 5 |
Ball screw adjusting mode |
Electrical |
| 6 |
Size of upper and lower compression plate |
370x370mm |
400x500mm |
| 7 |
Max. distance between upper and lower compression plate |
330mm |
500mm |
| 8 |
Max. stroke of piston |
100mm |
150mm |
| 9 |
Piston diameter |
310mm |
400mm |
| 10 |
Rated pressure of oil pump |
40Mpa |
| 11 |
Power |
3 phase 1.1kW |
| 12 |
Dimension |
700x700x1600mm |
800x800x1800mm |
| 13 |
Weight |
1600kg |
2300kg |
FAQ
Q1:What's your main products?
We are mainly focus on computerized, digitized and intelligent testing equipments.
Q2:How long is your delivery time?
The delivery time of the cargo generally within 14 days if it have stocked, or it depends on the quantity and production time.
Q3:What's your terms of payment?
T/T in advance, balance before shippment. Deposit is acceptable depends on the amount of the cargo.
Q4:Can I visit your factory or showroon?
Yes, warmly welcome to visit our factory, we will be very appreciate if you can inform us in advance and to comfirm the time.
